Voiles  -  Sails

images/02095.jpg (94282 octets)

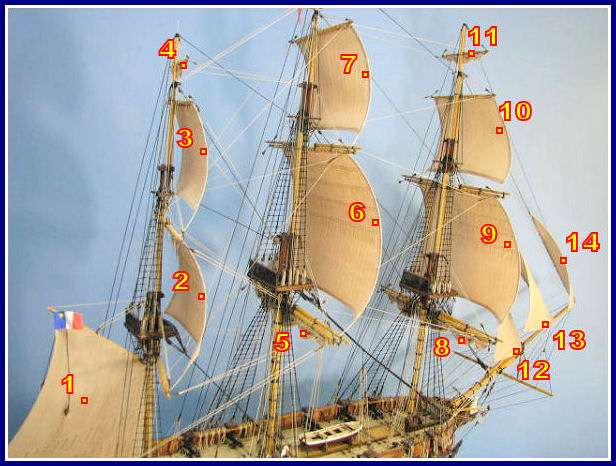

Voiles - Corvette (1812)   -   Sails - Corvette (1812)

1 - Brigantine   Spanker 8 - Misaine   Forecourse
2 - Perroquet de fougue   Mizen topsail    9 - Petit hunier   Fore topsail
3 - Perruche   Mizen topgallant 10 - Petit perroquet   Fore topgallant
4 - Cacatois de perruche   Mizen royal 11 - Petit cacatois   Fore royal
5 - Grand' voile   Main course 12 - Petit foc   Fore topmast staysail
6 - Grand hunier   Main topsail 13 - Grand foc   Inner jib
7 - Grand perroquet   Main topgallant 14 - Clin foc   Outer jib



images/02079.jpg (99368 octets)

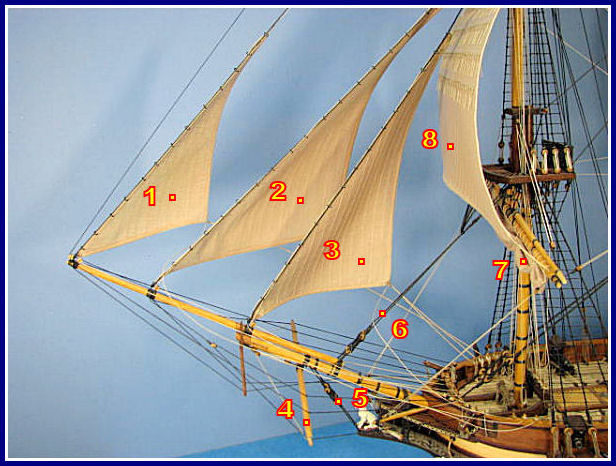

Focs - Corvette (1812)   -   Jibs - Corvette (1812)

1 - Clin foc   Outer jib 5 - Sous-barbe   Bobstay
2 - Grand foc   Inner jib 6 - Etai de bas mât de misaine   Fore stay
3 - Petit foc   Fore topmast staysail 7 - Voile de misaine carguée   Furled forecourse
4 - Vergue civadière   Spritsail yard    8 - Voile de petit hunier   Fore topsail

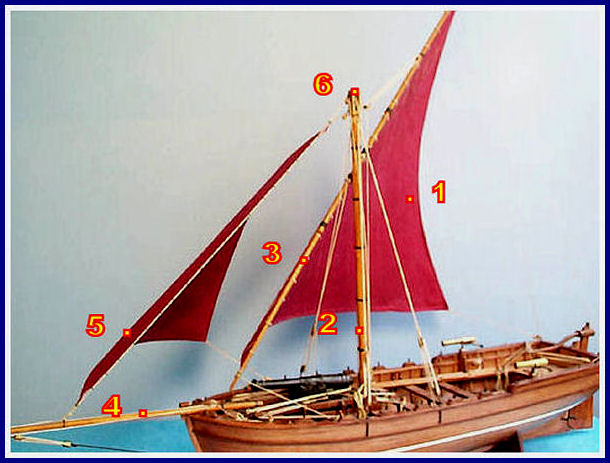

Chaloupe armée (1803)   -   Armed Launch (1803)

1 - Voile latine   Lateen sail      4 - Beaupré   Bowsprit
2 - Mâtereau   Small mast 5 - Foc   Jib
3 - Antenne   Lateen yard 6 - Calcet   Lateen mast head
